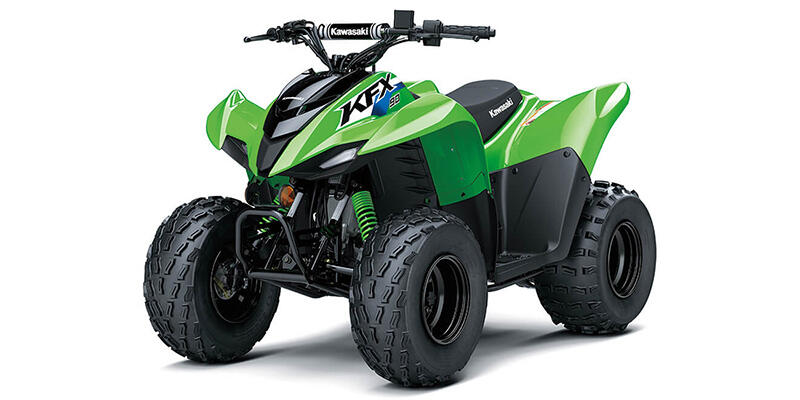

2026 KFX®90

2026 KFX®90

Request details

Description

Four-wheel fun starts with KFX®. Get the kids outdoors and ready to ride on the KFX®90 ATV line with proportionate power and size for riders ages 10 and older. KFX90 ATVs let kids take on more challenging tracks and bigger adventures with an 89.9cc engine and sporty suspension.

Specifications

  • ENGINE
    add remove
    • Engine Type
      Single-Cylinder
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Cooling
      Air
    • Valve Configuration
      SOHC
    • Bore (in)
      1.85
    • Stroke (in)
      2.04
    • Displacement (cc)
      89.9
    • Compression Ratio
      10:1
    • Carburetion Brand
      Keihin
    • Carburetion Type
      Carburetor
    • Valves Per Cylinder
      2
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Hi / Low Range
      No
    • Primary Drive (Rear Wheel)
      Chain
    • Reverse
      No
    • Primary Drive (Engine / Transmission)
      Belt
  • DRIVE LINE
    add remove
    • Driveline Type
      4X2
    • Number Of Driveline Modes
      1
    • Rear Unlocking Differential
      No
    • Rear Solid Axle
      Yes
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      35.6
    • Height (in)
      36.4
    • Wheelbase (in)
      38
    • Ground Clearance (in)
      3.9
    • Fuel Capacity (gal)
      1.4
    • Wet Weight (lbs)
      269
    • Turning Radius (ft)
      8.9
  • SUSPENSION
    add remove
    • Front Suspension Type
      Independent A-Arm
    • Front Travel (in)
      2.8
    • Front Adjustable Fork Pre-Load
      No
    • Front Adjustable Rebound Damping
      No
    • Front Central Suspension Strut
      No
    • Steering Damper
      No
    • Rear Suspension Type
      Swing Arm
    • Rear Suspension Material
      Steel
    • Rear Travel (in)
      2.9
    • Rear Adjustable Shock / Spring Pre-Load
      No
    • Rear Adjustable Rebound Damping
      No
    • Number Rear Shock Absorbers
      1
    • Front Stabilizer Bar
      No
    • Rear Stabilizer Bar
      No
    • Air Adjustable
      No
  • WHEELS & TIRES
    add remove
    • Wheels Composition
      Steel
    • Front Tire (Full Spec)
      Maxxis® AT 18 x 7 - 8
    • Rear Tire (Full Spec)
      Maxxis® AT 18 x 9 - 8
  • BRAKES
    add remove
    • Front Brake Type
      Dual Drum
    • Rear Brake Type
      Hydraulic Disc
  • SEATS
    add remove
    • Seat Type
      One-Piece
    • Seat Location
      Driver
    • Seat Material
      Vinyl
    • Seat Height (in)
      25.6
    • Number Of Seats
      1
  • Color options
    add remove
    • Lime Green
    • Bright White
